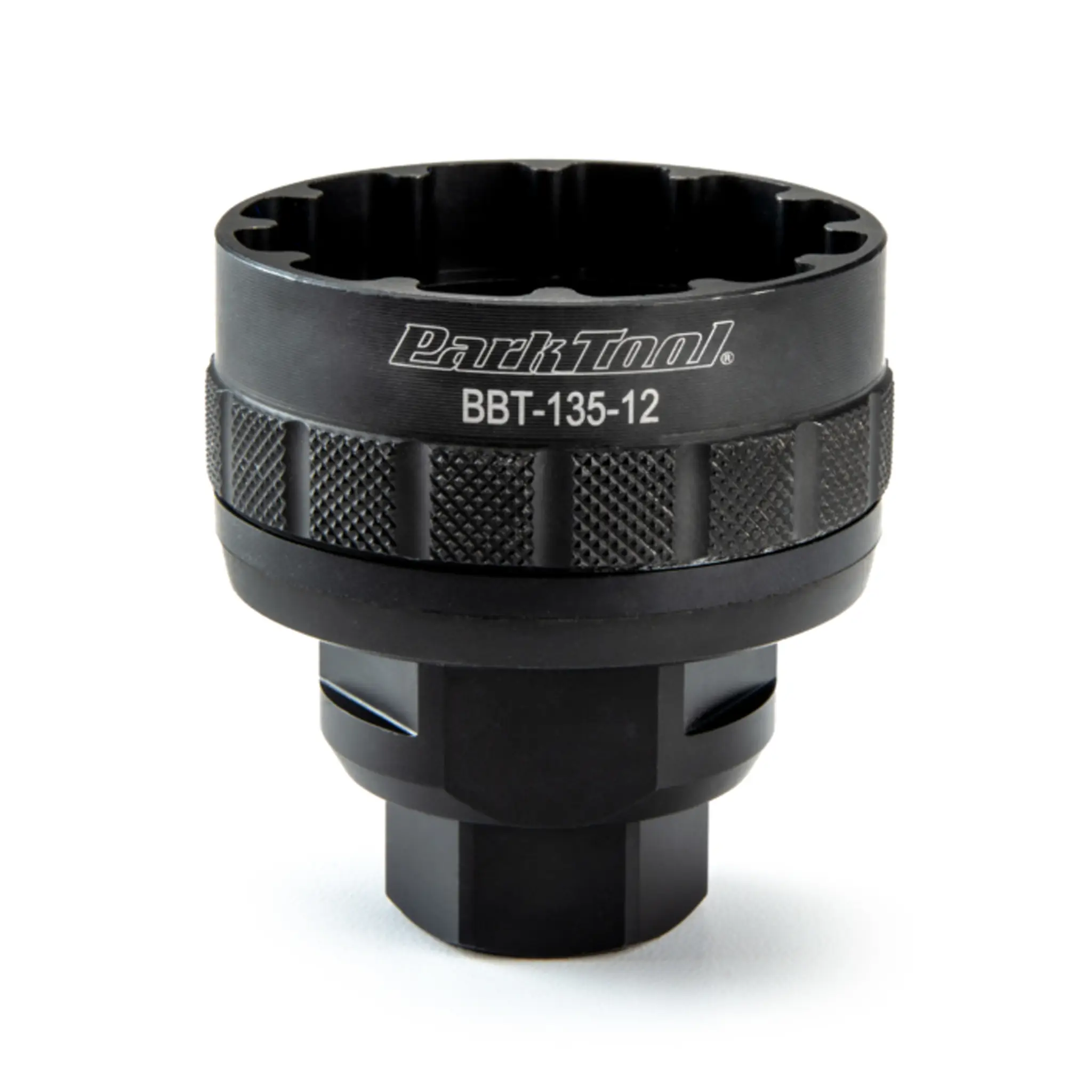

Park Tool BBT-135-12 Steel Bottom Bracket Tool
Constructed from precision-machined 4140 steel, the BBT-135-12 is a heavy duty tool for the removal and installation of select threaded bottom brackets with 12-notch tool fittings, including Praxis Works® M30. The BBT-135-12 is designed to be compatible with any bottom bracket with the corresponding tool fitting, with an extra-deep body to accommodate extra-wide spindles and low-profile walls at the point of engagement for recessed lockrings. The BBT-135-12 has three methods of tool engagement—a 3/8" drive fitting, a 1" hex fitting, and 36 mm wrench flats—allowing you to take on even the most seized bottom bracket cups. For added stability, the BBT-135-12 features integrated threads for use with the Park Tool BBT-RS Bottom Bracket Tool Retaining System or GPS-1 Guide Pins (each sold separately).
Fits 12-notch threaded bottom bracket tool fittings with a major diameter (outside of notches) of 48–50 mm and a minor diameter (inside of notches) of 46.3 mm, including Praxis Works® M30.
Tool specifications:
- 3/8" drive fitting
- 1" and 36 mm wrench flats
- 57.5 mm (2.264") outer diameter at point of engagement
- Internal clearance: 42 mm (1.654") depth
Original: $54.22
-65%$54.22
$18.98More Images
Park Tool BBT-135-12 Steel Bottom Bracket Tool
Constructed from precision-machined 4140 steel, the BBT-135-12 is a heavy duty tool for the removal and installation of select threaded bottom brackets with 12-notch tool fittings, including Praxis Works® M30. The BBT-135-12 is designed to be compatible with any bottom bracket with the corresponding tool fitting, with an extra-deep body to accommodate extra-wide spindles and low-profile walls at the point of engagement for recessed lockrings. The BBT-135-12 has three methods of tool engagement—a 3/8" drive fitting, a 1" hex fitting, and 36 mm wrench flats—allowing you to take on even the most seized bottom bracket cups. For added stability, the BBT-135-12 features integrated threads for use with the Park Tool BBT-RS Bottom Bracket Tool Retaining System or GPS-1 Guide Pins (each sold separately).
Fits 12-notch threaded bottom bracket tool fittings with a major diameter (outside of notches) of 48–50 mm and a minor diameter (inside of notches) of 46.3 mm, including Praxis Works® M30.
Tool specifications:
- 3/8" drive fitting
- 1" and 36 mm wrench flats
- 57.5 mm (2.264") outer diameter at point of engagement
- Internal clearance: 42 mm (1.654") depth
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Constructed from precision-machined 4140 steel, the BBT-135-12 is a heavy duty tool for the removal and installation of select threaded bottom brackets with 12-notch tool fittings, including Praxis Works® M30. The BBT-135-12 is designed to be compatible with any bottom bracket with the corresponding tool fitting, with an extra-deep body to accommodate extra-wide spindles and low-profile walls at the point of engagement for recessed lockrings. The BBT-135-12 has three methods of tool engagement—a 3/8" drive fitting, a 1" hex fitting, and 36 mm wrench flats—allowing you to take on even the most seized bottom bracket cups. For added stability, the BBT-135-12 features integrated threads for use with the Park Tool BBT-RS Bottom Bracket Tool Retaining System or GPS-1 Guide Pins (each sold separately).
Fits 12-notch threaded bottom bracket tool fittings with a major diameter (outside of notches) of 48–50 mm and a minor diameter (inside of notches) of 46.3 mm, including Praxis Works® M30.
Tool specifications:
- 3/8" drive fitting
- 1" and 36 mm wrench flats
- 57.5 mm (2.264") outer diameter at point of engagement
- Internal clearance: 42 mm (1.654") depth
